商品の詳細:
|
| Item name: | 3 Axis Mini Size Metal LCD Milling Machine Readout Kit | Usage: | Milling Machine Boring machine |
|---|---|---|---|
| System: | Large Size Milling Readout SDS200s | Scale model: | Linear Rulers: KA-600, KA-300, KA-500 |
| Signal: | Linear Rulers: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| ハイライト: | 3 Axis LCD Digital Readout,Linear Optical Encoder LCD Digital Readout |
||

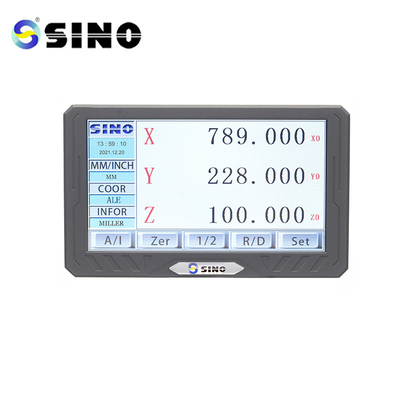

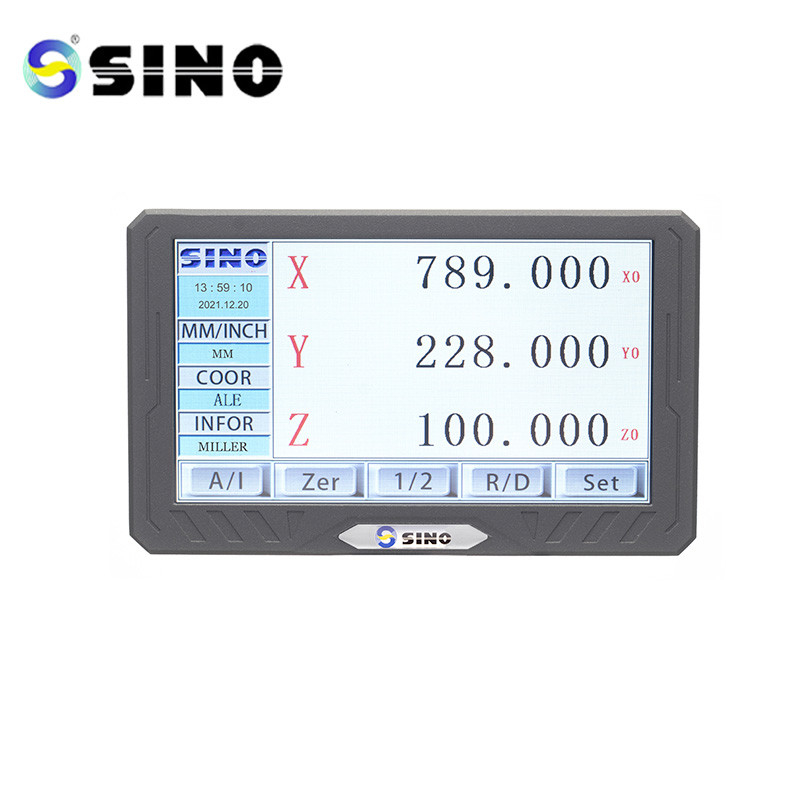

SINO SDS200S Linear Optical Encoder 3 Axis Migital Readouts LCD Digital Readout Display
The kit is special for 3 axis mini size milling machine requirements.
One LCD display readout SDS200s with two standard linear rulers KA-600 or KA-300.
Package list:
| Item name | 3 axis mini size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Five language support options: Chinese, German, French, English, and Spanish
-Touch Screen, simple to operate
- Efficient, straightforward system
-A large LCD screen with legible text
Features
All Chinese optical linear glass scales are compatible with the LCD display, which is widely used for lathe, drilling, boring, and milling equipment.
Lathes and milling machines are more beneficial for users from many countries thanks to its ability to switch between 5 languages via system on a single display.
Parameter
Model SDS200S
AC80V-240V as the input voltage
input signal for TTL
as a material, metal covers
USA, UK, EU, etc.
Detail Information:

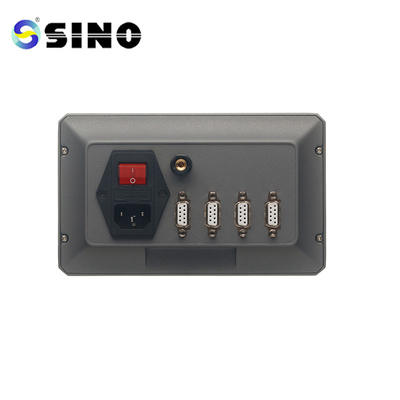

Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
