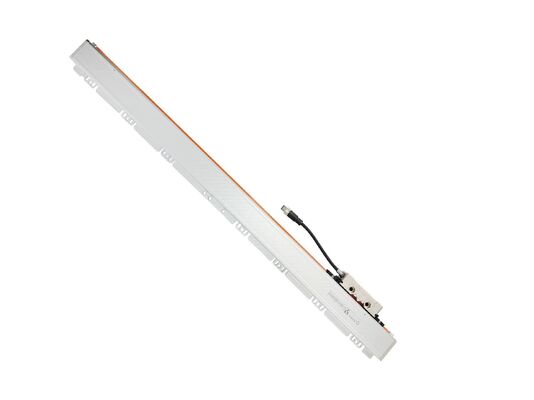

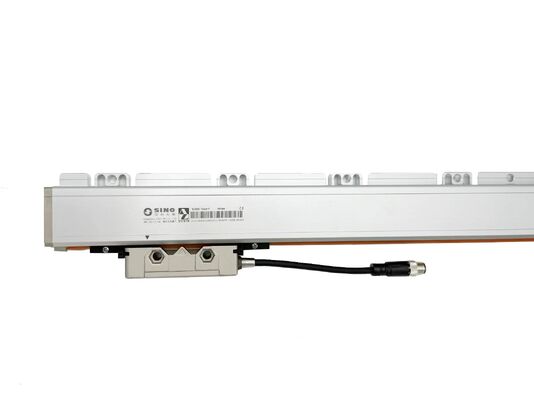

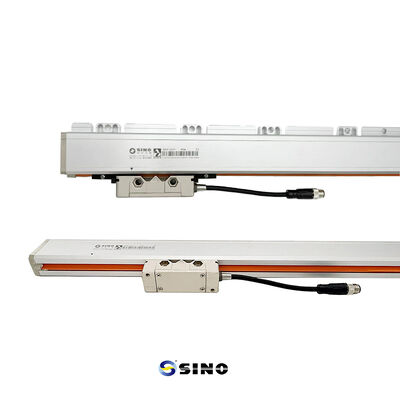

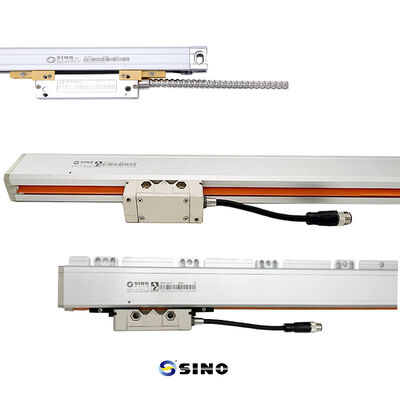

High Precision SINO NC600 Absolute Linear Encoder For CNC Machine Tools & Automation Equipment

High Precision SINO NC600 Absolute Linear Encoder For CNC Machine Tools & Automation Equipment

The NC600 absolute linear encoder is equipped with a genuine absolute positioning mechanism, enabling immediate position output upon power activation without requiring any homing operation.

Suitable for linear motors, CNC machine tools, automated production lines, precision instruments, and high‑accuracy control systems, this encoder guarantees stable and consistent performance across various industrial applications.

Developed with proprietary in‑house technology, the NC600 series features a sealed aluminum structure and dual‑layer sealing design. This rugged construction effectively safeguards the scale and reading head against dust, particles, and cutting fluids, ensuring long‑term durability even under harsh working conditions.

Globally Certified Quality:

ISO, CE and RoHS certified for full international compliance.
Wide Compatibility:

Complete specifications and multiple communication protocols for broad application.
30+ Years of Expertise:

Decades of industry experience supporting stable growth and continuous innovation.
Independent Innovation:

Self-developed core technology providing reliable domestic alternatives to imported key components.

The NC600 absolute linear encoder is designed for a wide range of applications, including:

• Automated equipment
• Advanced robotic systems
• Process control systems
• Precision scientific instruments
• CNC machine tools such as lathes, milling machines and grinding machines
• High-precision measuring devices operating in harsh environments including vibration, temperature fluctuations and contamination

Package Contents & Technical Specifications
Standard Configuration
Linear Glass Scale: NC600 series, standard measuring length 140-3240 mm
Reading Head: High-precision optical sensor module
Accessories: Mounting hardware and connection cables
Performance Parameters
Resolution: 0.5 μm, 1 μm, 5 μm optional to meet various application demands
Customization: Custom measuring lengths (L0) from 100 mm to 3000 mm are available
Optical System & Encoding Principle
The encoder adopts a high-resolution optical scanning system. As the reading head moves along the scale, it detects the graduation patterns and converts them into accurate position feedback signals.
The scale uses advanced optical encoding, mainly Gray code. Compared with natural binary code, Gray code allows only one bit to change between adjacent positions, which effectively reduces signal reading errors during high-speed movement and improves system stability.

Resolution & Mechanical Design
Resolution & Precision
The resolution of an absolute optical encoder depends on the density of the graduation markings on the scale. Finer graduations provide higher resolution and improved positioning accuracy. Resolution is usually expressed in bits or Counts Per Revolution (CPR).
Mechanical Engineering for Large-Scale Applications
The NC600 encoder is specially designed for large CNC machine tools, with a rugged mechanical structure offering:

• Superior Rigidity: The design emphasizes structural integrity to maintain stability under heavy loads.
• High Rigidity: Stable structural design ensures reliable performance under heavy loads.
• Flexible Support: Additional supports can be installed at any point along the encoder to increase rigidity and operational stability.
• Extended Measuring Range: Measuring lengths from 1000 mm to 3000 mm, ideal for large machine beds.
